Wheelsets

KEEP YOUR EQUIPMENT RUNNING AND OPTIMISE THE LIFESPAN OF YOUR COMPONENTS TO LOWER THE TOTAL COST OF OWNERSHIP.

MG-VALDUNES designs and manufactures forged wheelsets for all sorts of applications:

TRAILER WHEELSET


  • PRODUCTS: standard freight or passenger carrying wheelset.
  • ASSEMBLY: press-fitting or shrink-fitting.
  • PAINTING/PROTECTION: very high quality paint. Class 1: Deposit sprayed onto the axle or mechanical protection assembled onto the axle. Class 2 and 3: alkyd-based   paints, epoxy, and water based paint.
  • AXLE BOX MOUNTING: Installation of roller bearings and boxes. Installation of axle box equipment (phonic wheels, etc.).
  • TESTS: press fit curves. Resistivity. Dynamic balancing. EWT traceability (freight axle).
  • DIAMETER: 450 mm to 1050 mm.
  • REFERENCE STANDARDS: NFEN13260, BS5892P6, BN918274, UIC-813-O, etc.
  • TECHNICAL SPECIFICATION FOR INTEROPERABILITY: WAG TSI. No. 321/2013 + No. 1236/2013.



TRAILER WHEELSET WITH BRAKE DISCS


  • PRODUCTS: with brake discs on an axle or brake discs on a wheel.
  • ASSEMBLY: press-fitting or shrink-fitting. Traceability of tests checking whether the brake disc are flange-mounted on the wheels properly.
  • PAINTING/PROTECTION: very high quality paint. Class 1: Deposit sprayed onto the   axle or mechanical protection assembled onto the axle. Class 2 and 3: alkyd-based   paints, epoxy, and water based paint.
  • AXLE BOX MOUNTING: Installation of roller bearings and boxes. Installation of axle box equipment (phonic wheels, etc.).
  • TESTS: press fit curves. Resistivity. Dynamic balancing. EWT traceability (freight axle).
  • DIAMETER: 450 mm to 1050 mm.
  • REFERENCE STANDARDS: NFEN13260, BS5892P6, BN918274, UIC-813-O, etc.
  • TECHNICAL SPECIFICATION FOR INTEROPERABILITY: WAG TSI. No. 321/2013 + No. 1236/2013.

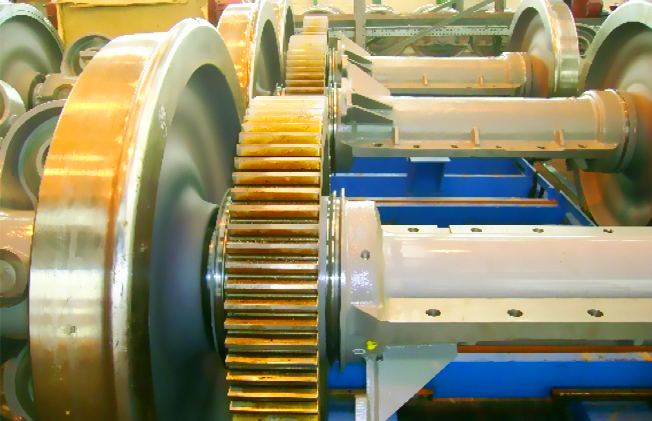

POWERED WHEELSET


  • PRODUCTS: with brake discs on an axle or brake discs on a wheel. With sprocket or   pinions, etc.
  • ASSEMBLY: press-fitting or shrink-fitting of wheels and pinions. Traceability of tests checking whether the brake disc are flange-mounted on the wheels properly.
  • PAINTING/PROTECTION: very high quality paint. Class 1: Deposit sprayed onto the axle or mechanical protection assembled onto the axle. Class 2 and 3: alkyd-based paints, epoxy, and water based paint.
  • AXLE BOX MOUNTING: Installation of roller bearings and boxes. Installation of axle box equipment (phonic wheels, etc.).
  • TESTS: press fit curves. Resistivity. EWT traceability (freight axle).
  • DIAMETER: 750 mm to 1050 mm.
  • REFERENCE STANDARDS: NFEN13260, BS5892P6, BN918274, UIC-813-O, etc.
  • TECHNICAL SPECIFICATION FOR INTEROPERABILITY: WAG TSI. No. 321/2013 + No. 1236/2013.



POWERED WHEELSET WITH “ CANNON BOX ”


  • PRODUCTS: with brake discs on an axle or brake discs on a wheel. With sprocket   or pinions, etc. With "Cannon Box".
  • ASSEMBLY: press-fitting or shrink-fitting of wheels and pinions. Shrink-fitting of the "Cannon box". Traceability of tests checking whether the brake disc are flange-mounted on the wheels properly.
  • PAINTING/PROTECTION: very high quality paint. Class 1: Deposit sprayed onto the   axle or mechanical protection assembled onto the axle. Class 2 and 3: alkyd-based   paints, epoxy, and water based paint.
  • AXLE BOX MOUNTING: Installation of roller bearings and boxes. Installation of axle box equipment (phonic wheels, etc.).
  • TESTS: press fit curves. Resistivity. EWT traceability (freight axle).
  • DIAMETER: 750 mm to 1050 mm.
  • REFERENCE STANDARDS: NFEN13260, BS5892P6, BN918274, UIC-813-O, etc.



SPECIAL WHEELSETS


  • PRODUCTS: with brake discs on an axle. With sprocket or pinions, etc.
  • ASSEMBLY: press-fitting or shrink-fitting of wheels and pinions.
  • PAINTING/PROTECTION: very high quality paint. Class 1: Deposit sprayed onto the axle or mechanical protection assembled onto the axle. Class 2 and 3: alkyd-based paints, epoxy, and water based paint.
  • AXLE BOX MOUNTING: Installation of roller bearings and boxes. Installation of axle   box equipment (phonic wheels, etc.).
  • TESTS: press fit curves. Resistivity. EWT traceability (freight axle).
  • DIAMETER: 750 mm to 1050 mm.
  • REFERENCE STANDARDS: NFEN13260, BS5892P6, BN918274, UIC-813-O, etc.
